PET Kablo Kılıfı
Created with Pixso.

Flame Retardant High Flexibility Abrasion Resistant PET Braided Cable Sleeve for Wire Harness Protection

Flame Retardant High Flexibility Abrasion Resistant PET Braided Cable Sleeve for Wire Harness Protection

Marka Adı: None
Model numarası: 5mm5m
Moq: 1
fiyat: negotiable
Ödeme şartları: L/C,D/A,D/P,T/T,Western Union
Tedarik Yeteneği: Günde 500000M
Ayrıntılı Bilgiler
Menşe yeri:
Jangsu Çin
Sertifika:
ISO9001
Malzeme:
PET
Çalışma sıcaklığı:
-50 ila 150C
Yanıcılık:
Yüksek yanıcılık
Alev Geciktirici:
Kendiliğinden sönen
Çevre Dostu:
Halojensiz, çevre dostu
Renk:
Siyah, mor, mavi, sarı, kırmızı, pembe, gri, kahverengi, beyaz vb.
Boyut:
5mm ,6mm ,10mm ,12mm ,15mm ,16mm ,25mm 65mm'ye kadar, diğer boyut istek üzerine özelleştirilebil
Performans:
Yüksek genişletilebilir güç
Çekme Dayanımı:
İyi esneklik ve çekme
Eriyik noktası:
250°C
Esneklik:
Mükemmel esneklik, bükülmesi veya çizilmesi kolay
Ambalaj bilgileri:
karton
Yetenek temini:
Günde 500000M
Vurgulamak:

flame retardant PET cable sleeve

,

abrasion resistant braided cable sleeve

,

high flexibility wire harness protector

Ürün Açıklaması

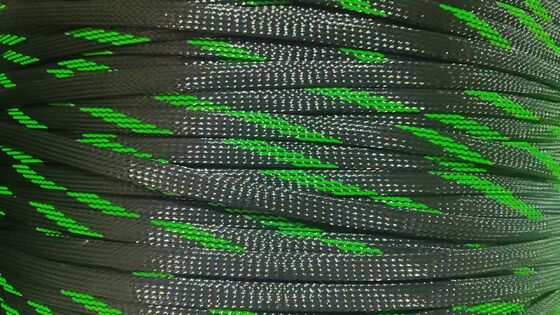

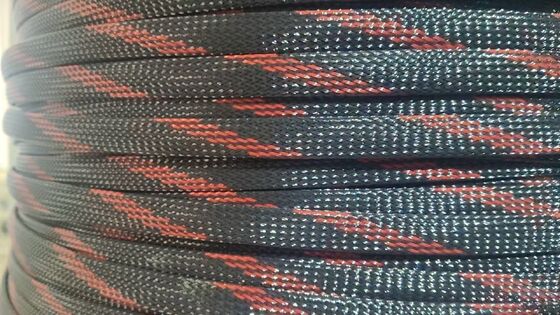

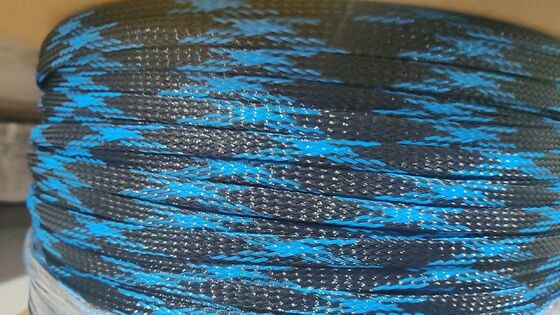

UL94 High Flexible PET Braided Cable Sleeve
Product Overview

PET braided expandable sleeving, also known as PET braided mesh tube or snake skin tube, is woven from high-tenacity eco-friendly PET monofilament. This versatile solution is widely used for wire harness protection, management, and finishing, offering excellent flexibility, abrasion resistance, and heat dissipation capabilities.

Material & Construction
Material
High-tenacity eco-friendly PET polyester monofilament
Structure
Open braided construction with high elasticity
Expansion Ratio
Up to 1.5 times of original diameter
Technical Specifications
Operating Temperature
-50°C to 150°C
Melting Point
240±10°C
Flammability Rating
UL94 V-2, VW-1
Environmental Compliance
RoHS, Halogen-free
Key Features
  • Highly flexible and expandable
  • Abrasion-resistant construction
  • Flame-retardant properties
  • Breathable design for heat dissipation
  • Anti-aging and chemical-resistant
Available Specifications

Flat Widths: 3mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm - 76mm

Standard Colors: Black, white, gray, red, blue, yellow, transparent

Applications
Electronics & Computers
Power cords, internal wiring, HDMI/USB/network cables, server equipment
Automotive & Rail
Engine harnesses, interior wiring, EV high voltage cables, charging pipes
Home Appliances
Air conditioners, refrigerators, washing machines, TVs, ovens
Industrial Equipment
Robots, automation machines, control cabinets, medical devices
Communication
Base stations, fiber jumpers, data center cables, optical equipment
Other Industries
Aerospace, marine wiring, audio engineering, stage lighting
