High Temperature Resistance PTFE Tube with Chemical Resistance and Self-Extinguishing Properties for Electronic Use

Marka Adı:	None
Model numarası:	10 mm
Moq:	1
fiyat:	negotiable
Ödeme şartları:	L/C,D/A,D/P,T/T,Western Union
Tedarik Yeteneği:	10000 metre gün

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Jangsu Çin

Sertifika:

ISO9001

Sıcaklık Dayanımı:

-65 ila 260C

Yanıcılık:

UL,VW-1

Yalıtım:

Yüksek

Kimyasal Direnç:

asit alkaliye dayanıklı

Renk:

Siyah, Kırmızı, sarı, beyaz, mavi, pembe, mor

Aşınma direnci:

0,05 ila 0,10

Söndürme yeteneği:

Kendiliğinden sönen

Elektrik:

Yüksek elektrik direnci

Ambalaj bilgileri:

karton

Yetenek temini:

10000 metre gün

Vurgulamak:

High temperature resistance PTFE tube

Chemical resistant PTFE tubing

Self-extinguishing PTFE tube electronics

Ürün Açıklaması

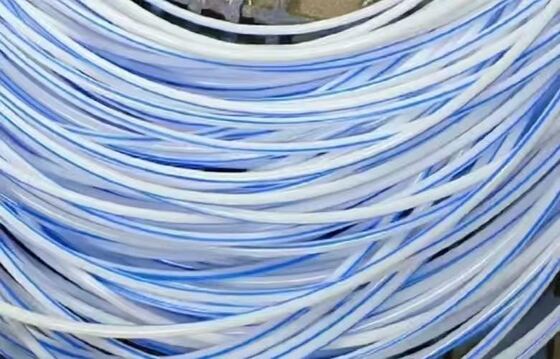

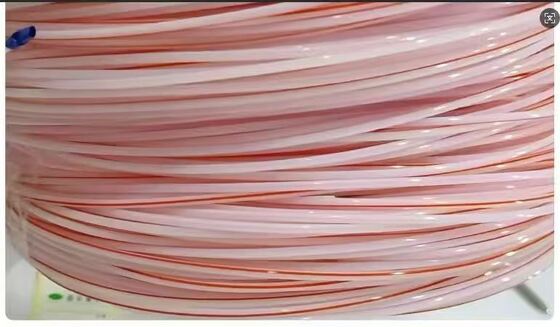

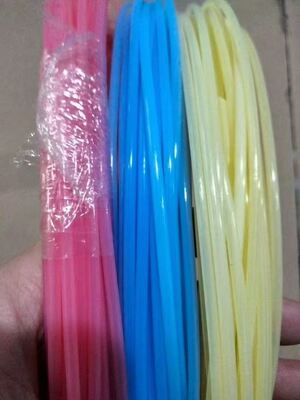

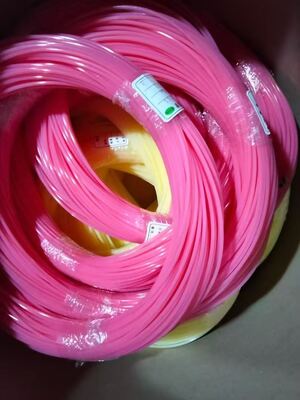

PTFE Non-Shrink Tubing

PTFE (Polytetrafluoroethylene) non-shrink tubing, also known as Teflon tubing, is a semi-rigid tube manufactured by extruding and sintering PTFE resin. It is non-heat-shrinkable (shrink temperature ≥ 320°C), maintaining stable dimensions under normal operating conditions.

Key Features

Temperature Range: -200°C to +260°C (continuous use)
Chemical Resistance: Resistant to almost all acids, alkalis, solvents, oxidizers (except fluorine, molten alkali metals)
Electrical Properties: High dielectric strength (≥55kV/mm), low dielectric constant (2.1), high volume resistivity (10¹⁸Ω·cm)
Low Friction: Lowest coefficient of friction among solids (≤0.04), non-stick, easy to clean
Mechanical: High strength, wear-resistant, creep-resistant, aging-resistant
Certifications: RoHS, REACH, FDA food contact compliant
Flammability: UL94 V-0 (self-extinguishing)

Specifications

Color: Natural translucent white, custom colors available
Voltage Ratings: 150V / 300V / 600V
Wall Thickness: Standard, thin, heavy
Sizes: Inner diameter 0.3mm ~ 20mm, custom available

Applications

Electronics: High-temperature wire harness, motor, transformer insulation
Chemical/Semiconductor: Corrosive fluid, high-purity chemical, specialty gas transport
Medical: Catheters, infusion tubes, steam sterilization lines
New Energy: EV battery coolant, high-voltage wire insulation
Aerospace: Extreme temperature, corrosion-resistant tubing
Food/Pharma: FDA-approved food transfer, sterilization line
