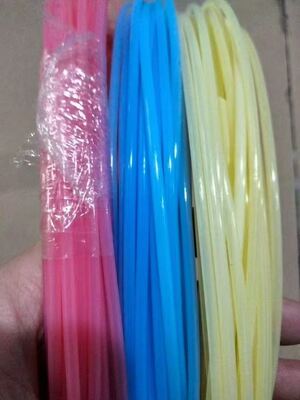

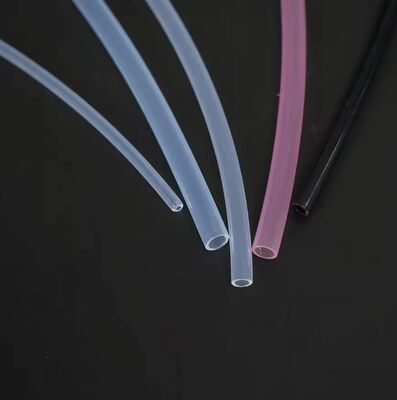

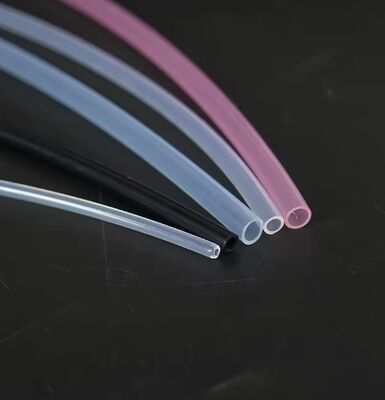

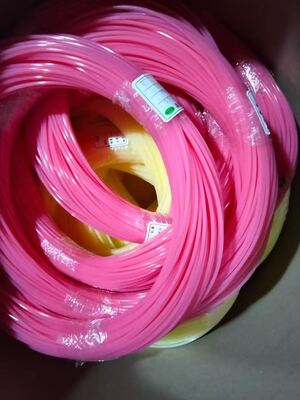

20mm Non-Shrinkable Anti-Aging PTFE Tube for Industrial Use with High Temperature Resistance

Name: 20mm Non-Shrinkable Anti-Aging PTFE Tube for Industrial Use with High Temperature Resistance
Brand: Changzhou Longchuang Insulating Material Co., Ltd.
SKU: 20mm
Price: 0.05 USD
Availability: InStock

Marka Adı:	None
Model numarası:	20mm
Moq:	5
fiyat:	negotiable
Ödeme şartları:	T/T
Tedarik Yeteneği:	10000 metre gün

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Jangsu Çin

Sertifika:

ISO9001

Malzeme:

PTFE

Renk:

PEMBE

Boyut:

20mm

Hacim gücü:

1x10^18Ω·cm

Kimyasal Direnç:

Asit, alkali, yağ, solvent direnci

Yaşlanma:

Yaşlanma karşıtı

Esneklik:

Yüksek

Sıcaklık:

-190'dan 260'a

Yanıcılık:

UL94, V-0

Ambalaj bilgileri:

karton veya plaka

Yetenek temini:

10000 metre gün

Vurgulamak:

20mm PTFE tube industrial use

Non-shrinkable PTFE tubing

High temperature resistant PTFE tube

Ürün Açıklaması

Description :

Non shrinkable PTFE tube is extruded from high quality PTFE resin with no heat shrinkable property ,stable dimension and high mechinical strength . It features excellent high and low temperature resistance ,corrosion resistance and high insulation performance .Colored types are available for line identification ,widely used in harsh conditons such as electrical ,chemical ,medical and aerospace field .

Key Feature :

Stable material ,non-shrinking and non-deforming ,high dimensional accuracy.
Operating temperature :-190 to 260 °C
Excellent chemical resistance to strong acids ,alkalis ,organic solvent and oils
Excellent electrical insulation ,low dielectric loss ,high insulation strengh
Low friction ,non-stick ,anti-aging ,weather resistant and UV resistant
Non-toxic and eco-friendly ,compliant with RoHS ,REACH ,partly FDA compliant
Various colors available for easy line identification

Typical applications :

Insulation sleeces for high frequency signal wires ,coaxial cables and sensors
Harness identification ,wire protection and terminal insulation
Protection tubes for transformers ,capacitors ,connectors and PCB circuits
Transfer tubes for highly corrosive chemicals and gases
Laboratory tubing ,analytical instruments and chromatograph catheters
Oil pumps ,hydraulic systems and oil and corrosion resistant sleeves
Medical catheters ,endoscope protection tubes and presion instrument sheaths
Hygienic transfer tubes for food ,beverage and filling equipment
Heat insulation tubes for engine wiring harnesses ,anti-corrosion tubes for fuel systems
Aerospace instrument wiring ,hydraulic pipelines and high temperature wire protection
